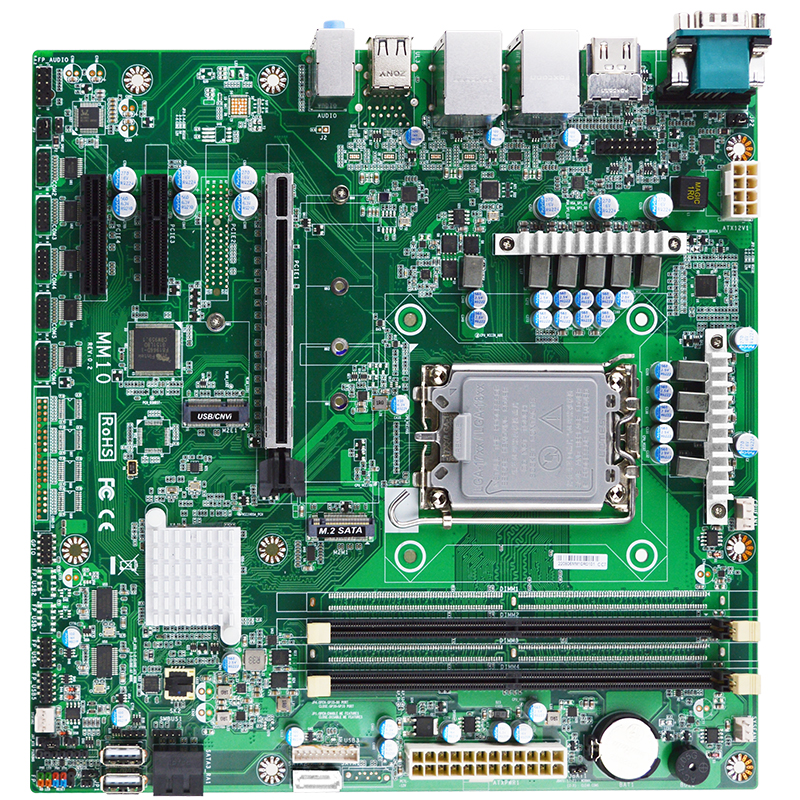

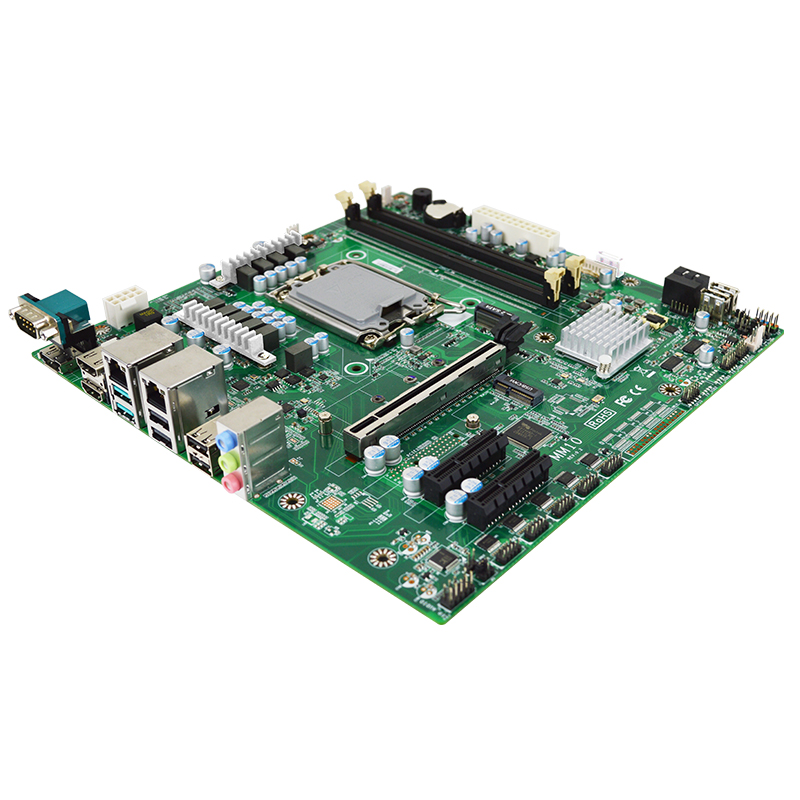

MM10-H6100

NT$8,160

Micro-ATX 主機板，採用Intel® LGA1700 第 12/13/14 代插槽處理器和 H610 晶片組

  • 採用Intel® LGA1700 第 12/13/14 代插槽處理器（原為 Alder Lake-S，TDP 125W）
  • 強大記憶體：2 x DDR5 4800MT/s/4000MT/s UDIMM，記憶體容量高達 96GB
  • 多重顯示輸出：2 x 4K HDMI® 2.0b、1 x 4K DP 1.4a、1 x VGA，支援三顯
  • 全面的連接性：6 個 COM 連接埠、2 個 USB 3.2 Gen.2、1 個 USB 3.2 Gen.1、11 個 USB 2.0
  • 靈活的儲存擴充：3 x SATA III，1 x M.2 M-Key（2242/2260/2280/22110）
  • 高擴充性：1 x PCIe Gen.5 x16、2 x PCIe Gen.3 x4、1 x M.2 E-Key (2230)

運送至台灣將加收額外5%銷售稅
加入願望清單
分類: 標籤:
產品規格
產品規格
TOP∧
SYSTEM
MB FORM FACTOR Micro-ATX
CPU Intel® LGA1700 12/13/14th Gen Socket Processor (Formerly Alder Lake-S, TDP 125W)
CHIPSET Intel® H610
MEMORY 2 x DDR5 4800/4000MT/s Dual Channel U-DIMM, up to 96GB
BIOS AMI 256Mb Flash ROM
WATCHDOG TIMER 255 Levels
SECURITY —
DIMENSION (W X D) 244.0 (W) x 244.0(D) mm (9.6″ x 9.6″)
OS SUPPORT Windows® 11 (64bit)
Windows® 10 (64bit)
Windows® 10 (32bit)
Linux
POWER
POWER REQUIREMENT ATX Power Supply
POWER ON MODE AT / ATX
CONNECTOR 24+8-pin ATX PWR
DISPLAY
GPU Intel® UHD Graphics
DP 1 x DP1.4a (Max Resolution: 4096 x 2304@60Hz)
HDMI® 2 x HDMI® 2.0b (Max Resolution: 4096 x 2160@60Hz)
VGA 1 x VGA (Max Resolution: 1920 x 1080 @60Hz)
MULTIPLE DISPLAY Support 3 Displays
AUDIO
CODEC Realtek Audio Codec
Line-in 1 x Audio Jack for Line-In
Line-out 1 x Audio Jack for Line-Out
MIC-in 1 x Audio Jack for MIC-In
LAN
ETHERNET 1 x RJ45 for Intel® I219-V GbE
1 x RJ45 for Realtek® RTL8153 GbE
USB PORT
USB 2 x USB 3.2 Gen 2×1 (10Gbps, Formerly USB 3.1 Gen 2)
4 x USB 2.0
Internal Header for 1 x USB 3.2
Internal Header for 5 x USB 2.0
Internal USB Type A (Vertical) for 2 x USB 2.0
SERIAL PORT
COM 1 x DB-9 for RS-232/422/485
Internal Header for 5 x RS-232
INTERNAL I/O
GPIO 8-Bit
SMBUS Yes
ADDITIONAL 1 x PS/2
1 x Chassis Intrusion
1 x Audio Header
1 x AT Mode Selection
STORAGE
SATA 3 x SATA III
1 x SATA Power Connector
EXPANSION
M.2 1 x M-key 2242/2260/2280/22110 (SATA Interface)
1 x E-Key 2230 (USB2.0) Support CNVi
PCIe 1 x PCIe Gen.5 x16
2 x PCIe Gen.3 x4
ENVIRONMENT & CERTIFICATION
SHOCK 15G, 11ms duration
VIBRATION 1 Grms/ 5~ 500Hz/ Operation
OPERATING TEMPERATURE 0°C ~ 60°C (32°F ~ 140°F)
STORAGE TEMPERATURE -20°C ~ 85°C (-4°F ~ 185°F)
OPERATING HUMIDITY 10 ~ 90% Relative Humidity, Non-condensing
CERTIFICATION CE/FCC Class A
LVD
ESG DECLARATION EU RoHS
China RoHS
REACH
標準配件
TOP∧
PART NUMBER DESCRIPTION QTY
MM10-H6100 Series MM10-H6100 Series M/B 1
F04-MB-090-F MM10 I/O Shield 1
G01-SATA3-BL-1F SATA Cable 2
G01-COM-H2M22-1F COM Cable 3

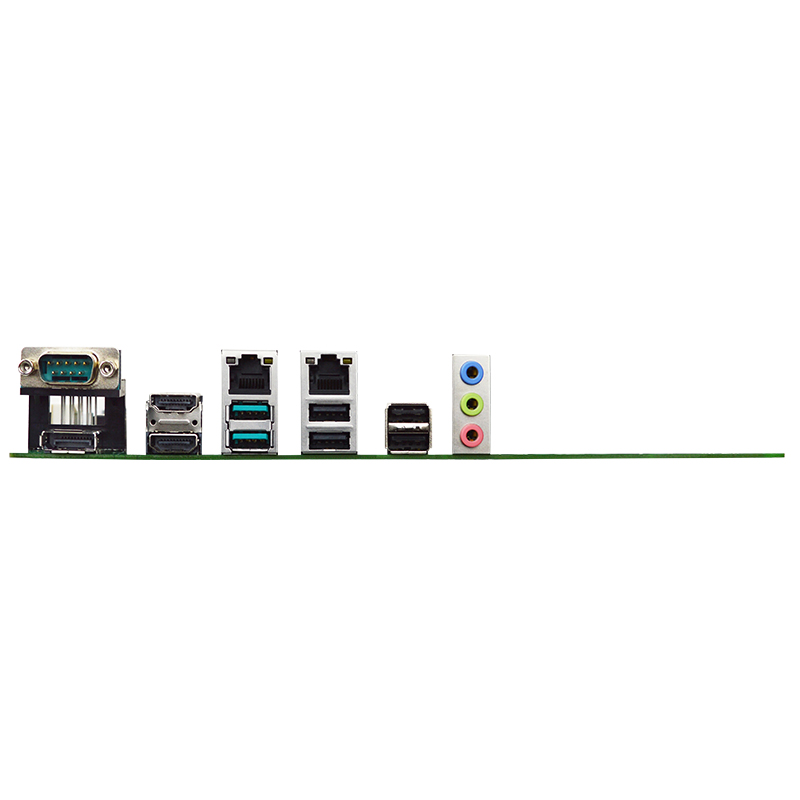

IO 圖
TOP∧
機械圖
TOP∧

注意：所有規格如有更改，恕不另行通知。
