| SYSTEM | |
| MB FORM FACTOR | 3.5″ |
| CPU | Onboard Intel® Core™ Ultra 5 Processor 125U (Formerly Meteor Lake, TDP 15W) |
| CHIPSET | Intel® SoC |
| MEMORY | 2 x DDR5 5600MT/s, Dual Channel SO-DIMM, up to 96GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | Intel® PTT (fTPM) |
| RTC BATTERY | Lithium Battery |
| DIMENSION (W X D) | 148.0 (W) x 102.0 (D) mm (5.8″ x 4.0″) |
| OS SUPPORT | Windows® 11 (64bit) Windows® 10 (64bit) Linux |
| POWER | |
| POWER REQUIREMENT | DC-in 12~36V |
| POWER ON MODE | AT / ATX (Default) Mode |
| CONNECTOR | DC Jack |
| DISPLAY | |
| GPU | Intel® Graphics |
| LVDS | 1 x 24-bit Dual Channel LVDS (Max. Resolution: 1920 x 1200 @60Hz, Co-lay eDP) |
| Type-C DP | 1 x Type-C DP1.4 (Max Resolution: 4096 x 2160@60Hz) |
| DP | 1 x DP1.4 (Max Resolution: 4096 x 2160@60Hz) |
| HDMI® | 1 x HDMI® 2.0b (Max Resolution: 4096 x 2160@60Hz) |
| MULTIPLE DISPLAY | Support 4 Displays |
| AUDIO | |
| CODEC | Realtek Audio Codec |
| COMBO | 1 x Internal Header |
| AMPLIFIER | 3W |
| LAN | |
| ETHERNET | 1 x RJ45 for Intel® I226-V 2.5GbE 1 x RJ45 for Intel® I226-LM 2.5GbE |
| USB PORT | |
| USB | 1 x USB 3.2 Gen 2×2 Type-C (20Gbps) 3 x USB 3.2 Gen 2×1 (10Gbps, Formerly USB 3.1 Gen 2) Internal Header for 4 x USB 2.0 |
| SERIAL PORT | |
| COM | Internal Header for 4 x RS-232/422/485 |
| INTERNAL I/O | |
| GPIO | 8-Bit |
| SMBUS | Yes |
| I2C | Yes |
| FAN | 1 x 4-pin Connector for CPU Fan (PWM Mode) |
| FRONT PANEL | HDD Active LED Power LED Power On/Off Reset |
| ADDITIONAL | 1 x Chassis intrusion 1 x AT/ATX Mode Selection |
| STORAGE | |
| SATA | 1 x SATA III 1 x SATA Power Connector |
| RAID | RAID 0/1 |
| EXPANSION | |
| M.2 | 1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) Support CNVi 1 x B-Key 3042/3052 (USB 3.2/PCIe 3.0 x2) 1 x M-Key 2242/2280 (PCIe 4.0 x4 / SATA III) Support NVMe |
| SIM | 1 x Nano SIM Card Slot |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | -20°C ~ 60°C (-4°F ~ 140°F) |
| STORAGE TEMPERATURE | -20°C ~ 85°C (-4°F ~ 185°F) |
| OPERATING HUMIDITY | 10 ~ 90% relative humidity, non-condensing |
| CERTIFICATION | CE/FCC Class A |
| PART NUMBER | DESCRIPTION | QTY |

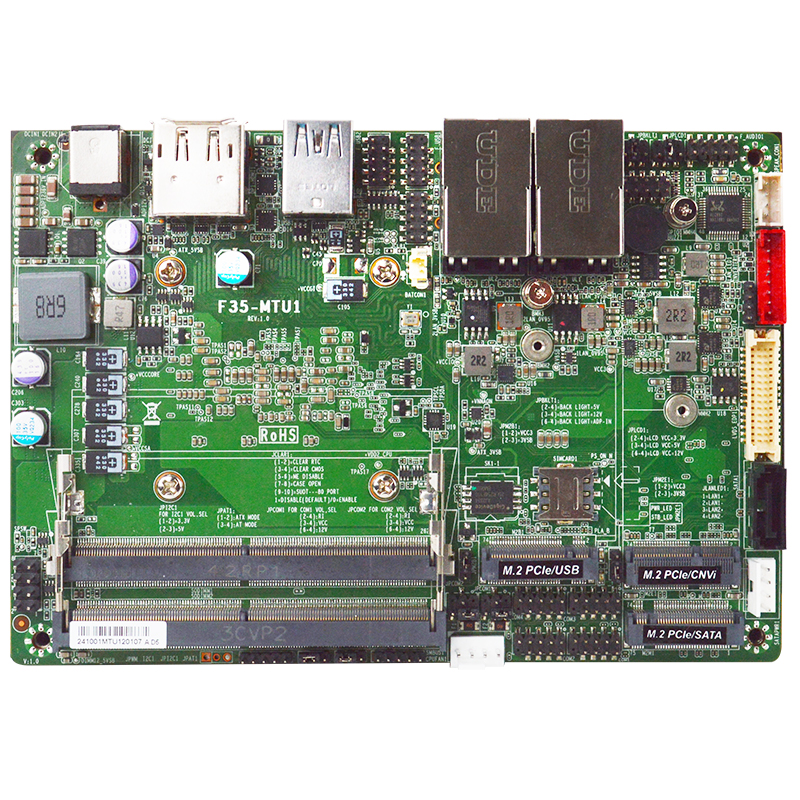

| F35-MTU1 | F35-MTU1 | 1 |
| G01-COM-H2M20-1F | COM Cable | 2 |
| G01-SATA3-BL-1F | SATA Cable | 1 |
| G01-PW4PS2S-322-1F | SATA Power Cable | 1 |
| F05-JF35-04-F | Heat Sink(Assembled) | 1 |
| F07-FN606010-F | FAN(Assembled) | 1 |
 |
 |
注意：所有規格如有更改，恕不另行通知。
