| SYSTEM | |
| MB FORM FACTOR | NUC |
| CPU | Onboard Intel® Celeron® Processor J3455 (Formerly Apollo Lake, TDP 10W) |
| CHIPSET | Intel® SoC |
| MEMORY | 1 x DDR3L 1866MT/s SDRAM SO-DIMM up to 8GB |
| BIOS | AMI Flash ROM |
| SECURITY | TPM (Optional) |
| OS SUPPORT | Windows® 10 (64bit) Linux |
| POWER | |
| POWER REQUIREMENT | DC-in 12V 40W Adapter: AC90~240V, DC12V/3.3A |
| DISPLAY | |
| HDMI® | 2 x HDMI® (Max Resolution: 3840 x 2160@30Hz) |
| VGA | 1 x VGA (Max Resolution: 1920 x 1080 @60Hz) |
| MULTIPLE DISPLAY | Support 2 Displays |
| LAN | |
| ETHERNET | 2 x RJ45 for Realtek® RTL8111H GbE |
| SYSTEM I/O | |

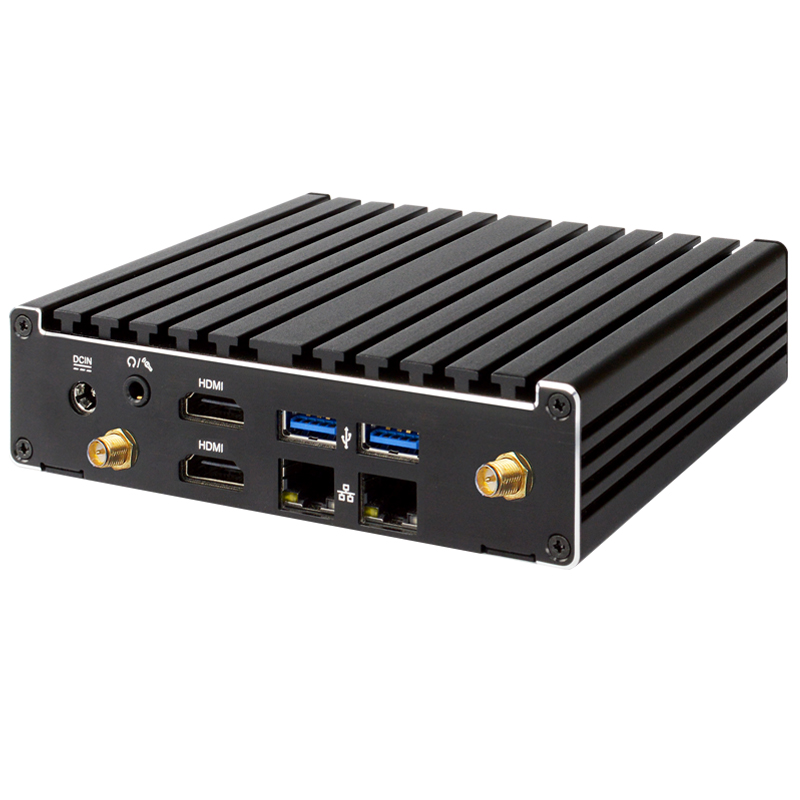

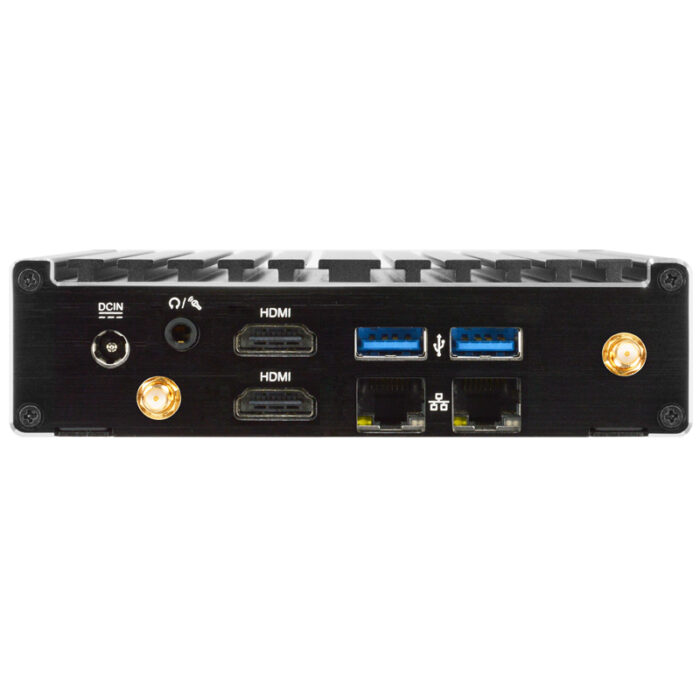

| REAR PANEL I/O | 2 x USB 3.0 2 x HDMI® 2 x RJ45 1 x Audio ( Line out, MIC) 2 x WIFI Antenna Holes 1 x DC-in |

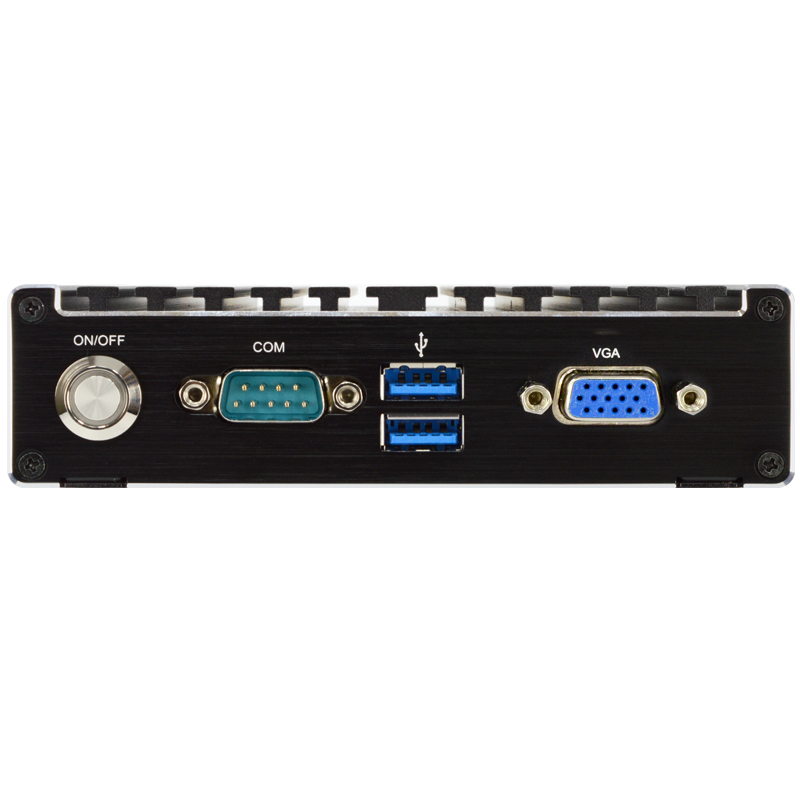

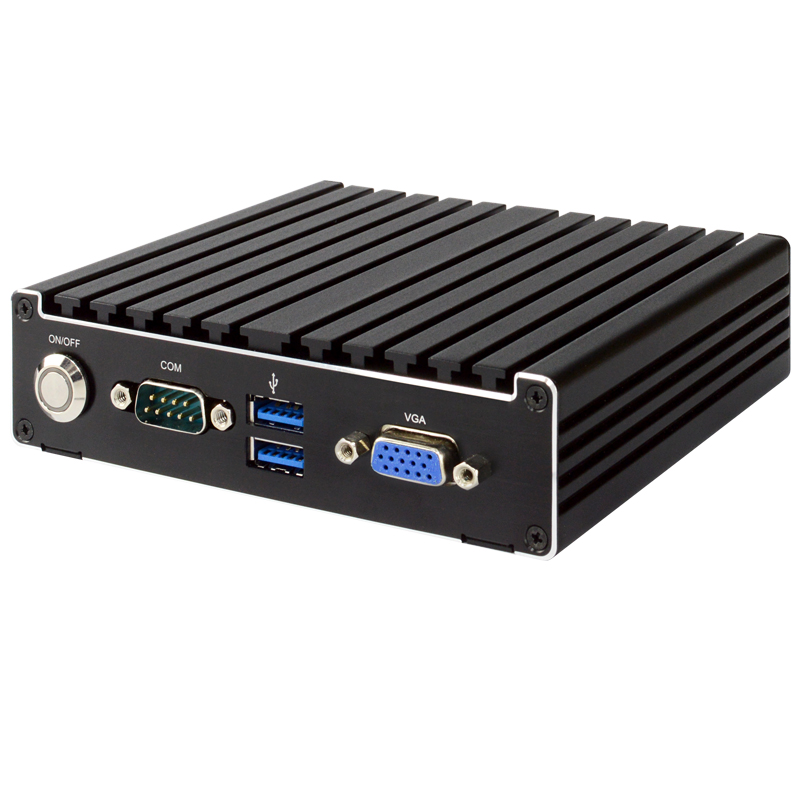

| FRONT PANEL I/O | 1 x Power Button + Power LED 1 x RS-232/422/485 2 x USB 3.0 1 x VGA |
| STORAGE | |
| MINI PCI-E | 1 x Half Size Mini-PCIe |
| mSATA | 1 x Full Size mSATA (shared with mPCIe) |
| EXPANSION | |
| SIM | 1 x SIM Card Slot |
| MECHANICAL | |
| MOUNTING | VESA, DIN Rail Clip |
| DIMENSIONS (W x D x H) | 129.0 (W) x 109.4 (D) x 34.0 (H) mm |
| GROSS WEIGHT | 1.4 kg |
| NET WEIGHT | 0.6 kg |
| ENVIRONMENT & CERTIFICATION | |
| SHOCK | 15G, 11ms duration |
| VIBRATION | 1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE | 0°C ~ 60°C (32°F ~ 140°F) |
| STORAGE TEMPERATURE | -20°C ~ 80°C (-4°F ~ 176°F) |
| CERTIFICATION | CE/FCC Class A |
| ESG DECLARATION | EU RoHS China RoHS ErP |
| PART NUMBER | DESCRIPTION | QTY |
| HBJC420U691 Series | HBJC420U691 Series | 1 |
| L01AS050-F | Adapter 12V/40W | 1 |
| Change according to shipping area | Power Cord | 1 |
| HCS310MWM01B-1F | VESA Mount / Black Color | 1 |
| LCSCHBJC3XX-F | Screw Pack | 1 |
| HCS3XXDINRAILPS-F | Din Rail Clip | 1 |
 |
 |
