HBFBU03I-6412-E-A1

USD$348

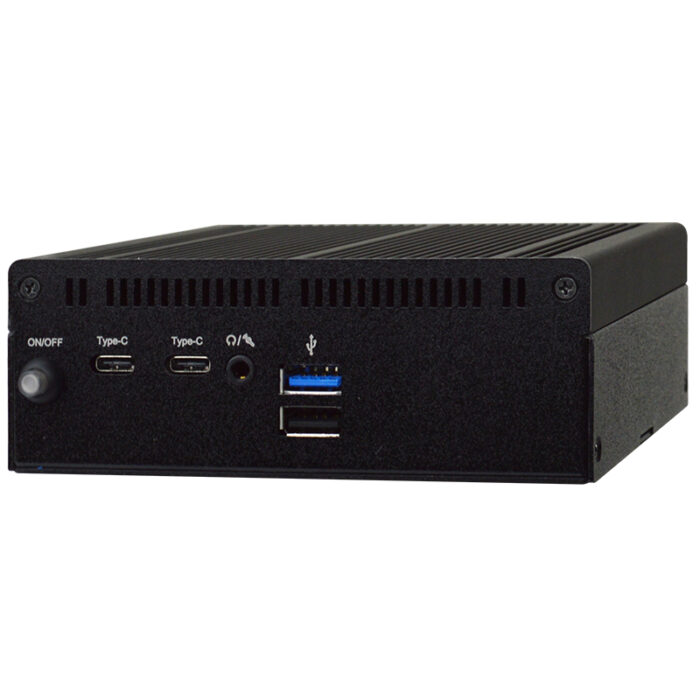

Compact Fanless Embedded system with Intel® J6412 SoC processor supporting Wide temperature operation from -20°C to 60°C

  • Powered by Intel® J6412 SoC Processor (Elkhart Lake)
  • Triple Display Support: 2 x HDMI® and 1 x DP for flexible and high-quality visuals
  • Dual 2.5GbE Ethernet Ports: High-speed and reliable networking
  • Comprehensive I/O: 2 x USB 3.2 Gen2, 2 x USB 3.2 Gen2 Type-C, and 1 x USB 2.0
  • Onboard eMMC
  • Compact Fanless Design with Wall-Mount Compatibility: Optimized for Space-Saving

shipping to TW will add extra 5% sale tax
Add to wishlist
Category: Tag:
Specifications
Specifications
TOP∧
SYSTEM
MB FORM FACTOR NUC
CPU Onboard Intel® Celeron® Processor J6412 (Formerly Elkhart Lake, TDP 10W)
For additional compatible CPUs, please contact regional sales
CHIPSET Intel® SoC
MEMORY 1 x DDR4 3200MHz, Single Channel SO-DIMM, up to 32GB
BIOS AMI Flash ROM
WATCHDOG TIMER 255 Levels
OS SUPPORT Windows® 11 (64bit)
Windows® 10 (64bit)
Linux
POWER
POWER REQUIREMENT DC-in 12V
40W Adapter: AC90~240V, DC12V/3.3A
POWER ON MODE AT / ATX
DISPLAY
GPU Intel® HD Graphics, shared memory
DP 1 x DP (Max Resolution: 4096 x 2160@60Hz)
HDMI® 2 x HDMI® 2.0 (Max Resolution: 4096 x 2160@60Hz)
MULTIPLE DISPLAY Support 3 Displays
LAN
ETHERNET 2 x RJ45 for Intel® I226-V 2.5GbE
SYSTEM I/O

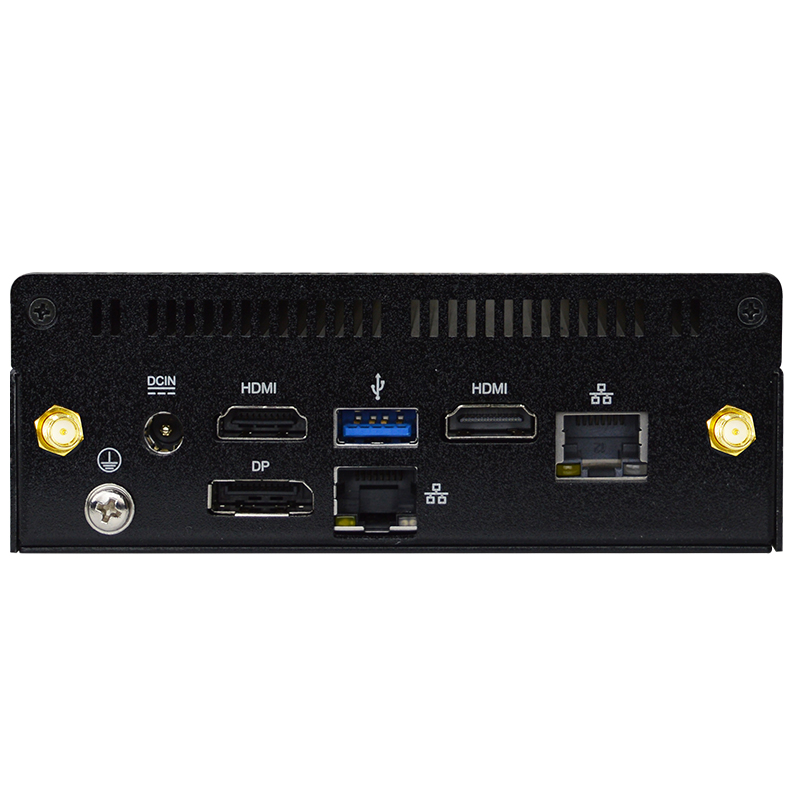

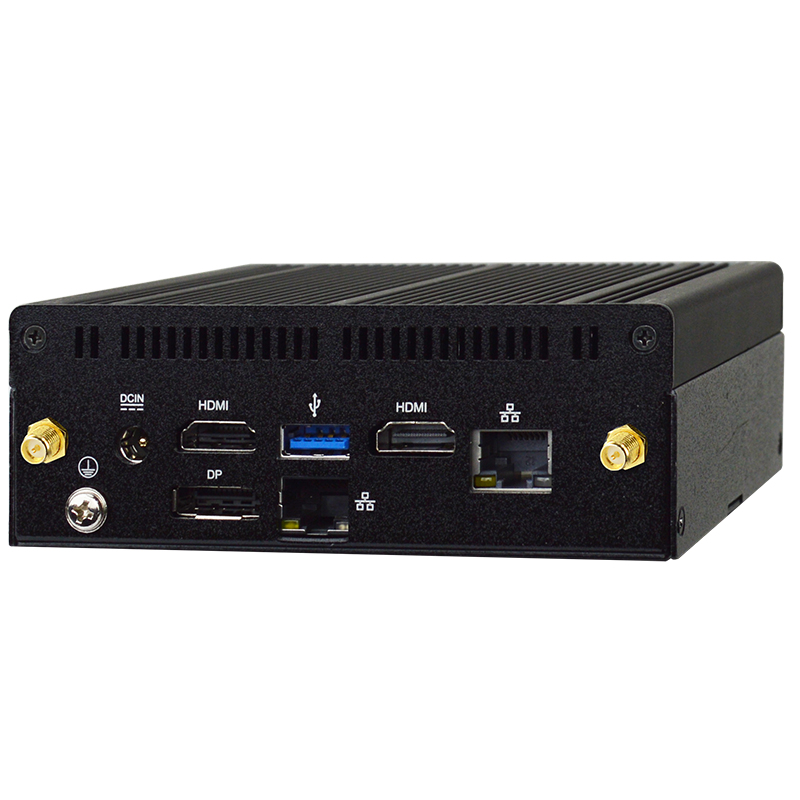

REAR PANEL I/O 2 x RJ45
1 x DP
1 x DC-in
2 x HDMI®
1 x USB 3.1 (Gen 2)
2 x WIFI Antenna Holes
1 x GND Hold

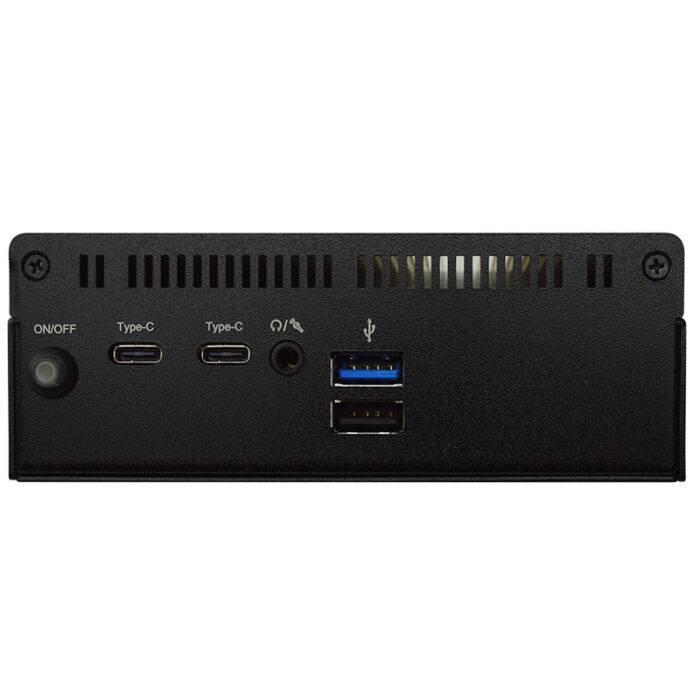

FRONT PANEL I/O 1 x Power Button
1 x Power LED
2 x USB 3.1 Gen 2 Type C
1 x Combo Audio (Line out & Mic)
1 x USB 2.0
1 x USB 3.1 (Gen 2)
STORAGE
eMMC Onboard 64GB eMMC 5.1
EXPANSION
M.2 1 x M-Key 2260/2280 (PCIe 3.0 x2/SATA) Support NVMe
1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1)
MECHANICAL
MOUNTING Wall Mount
DIMENSIONS (W x D x H) 125.0 (W) x 109.2 (D) x 44.5 (H) mm
ENVIRONMENT & CERTIFICATION
SHOCK 15G, 11ms duration
VIBRATION 1 Grms/ 5~ 500Hz/ Operation
OPERATING TEMPERATURE -20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE -40°C ~ 85°C (-40°F ~ 185°F)
OPERATING HUMIDITY 10 ~ 95% @ 40°C, Non-condensing
CERTIFICATION CE/FCC Class A
LVD
ESG DECLARATION EU RoHS
China RoHS
ErP
Packing List
TOP∧
PART NUMBER DESCRIPTION QTY
HBFBU03 Series HBFBU03 Series 1
HCSFBMWM01B-F FB Wall Mount 1
L01AS050-F Adapter DC12V_40W 1
Change according to shipping area Power Cord 1
LCSCHBJC3XX-F JBC3XX Barebone Screw Pack 1
J05-ANT-GX57245-F Antenna 2G4/5G 2.8dBi GX572450001SM 1
IO Diagram
TOP∧
Mechanical
TOP∧

Note: All specifications are subject to change without notice.
