| SYSTEM | |
| MB FORM FACTOR | 3.5″ |
| CPU | Onboard Intel® 13th Gen Core™ i5-1335UE (Formerly Raptor Lake-P, TDP 15W) |
| CHIPSET | Intel® SoC |
| MEMORY | 1 x DDR5 4800MT/s, Single Channel SO-DIMM, up to 32GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | Intel® PTT (Integrated fTPM) |
| RTC BATTERY | Lithium Battery |
| OS SUPPORT | Windows® 11 (64bit) Windows® 10 (64bit) Linux |
| POWER | |
| POWER REQUIREMENT | DC-in 19V 90W Adapter: AC90~240V, DC19V/4.7A |
| POWER ON MODE | ATX (Default) Mode |
| DISPLAY | |
| GPU | Intel® Iris® Xe Graphics |
| HDMI® | 1 x HDMI® 1.2 (Max Resolution: 1920 x 1080@60Hz) |
| LAN | |
| ETHERNET | 3 x RJ45 for Intel® I226-V 2.5GbE 1 x RJ45 for Intel® I226-LM 2.5GbE |
| SYSTEM I/O | |

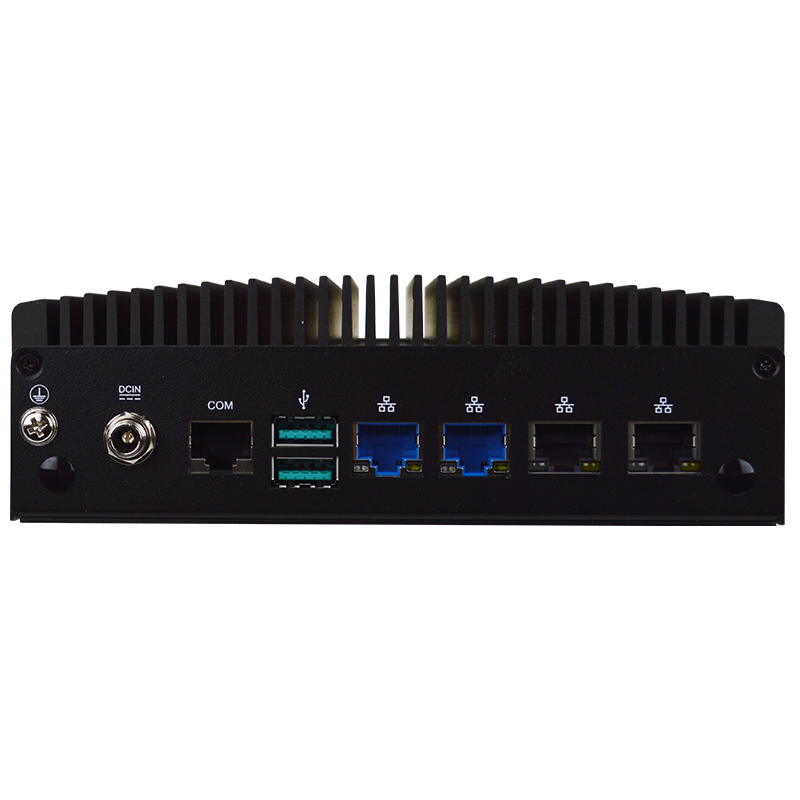

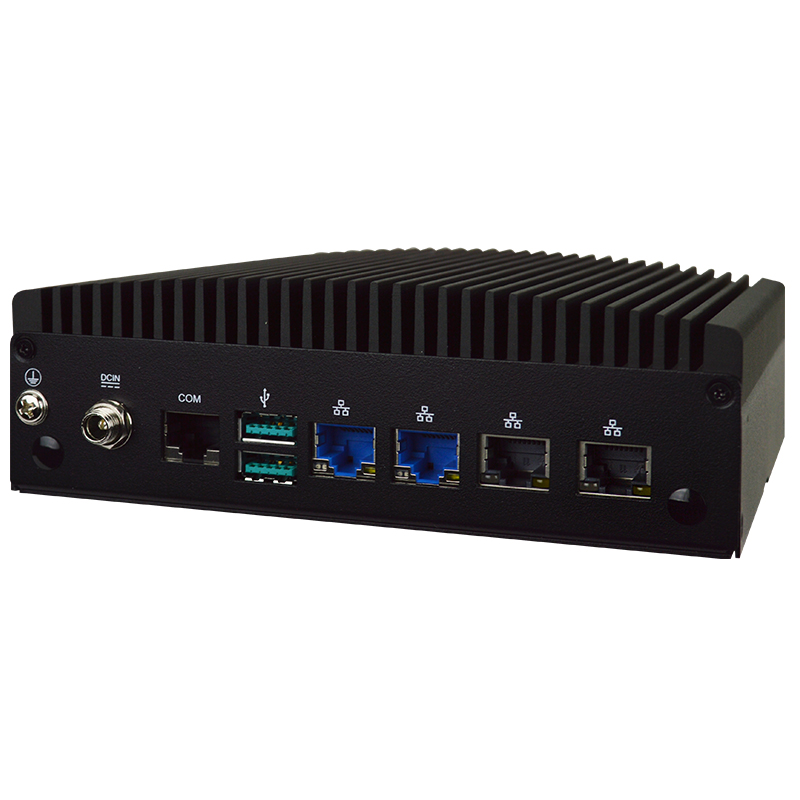

| REAR PANEL I/O | 2 x WIFI Antenna Holes 1 x DC-in (Lockable) 1 x COM (RJ45 Type) 2 x USB 3.2 Gen 2 4 x RJ45 1 x GND Hold |

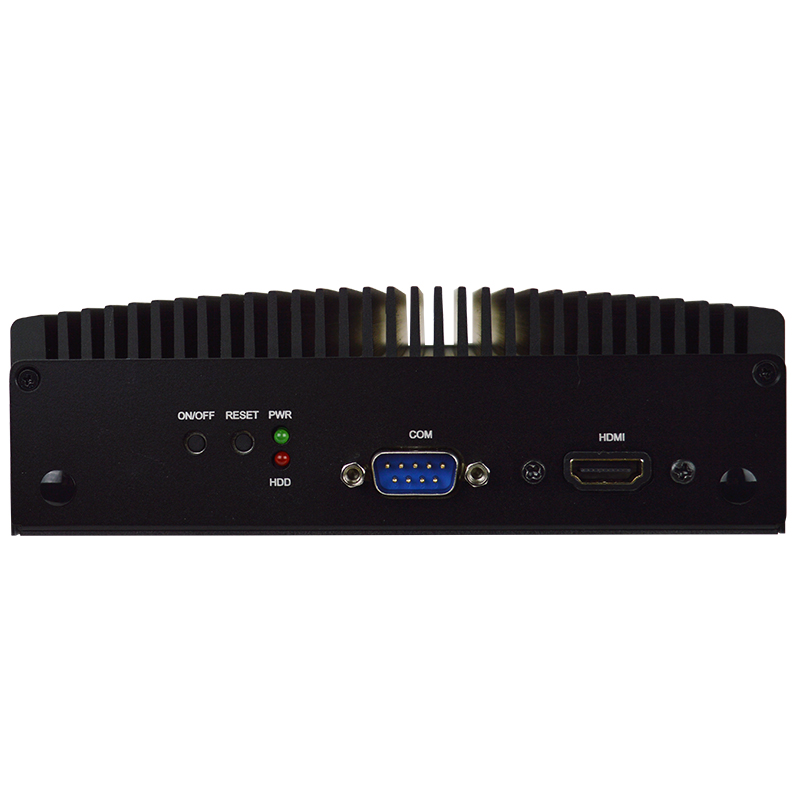

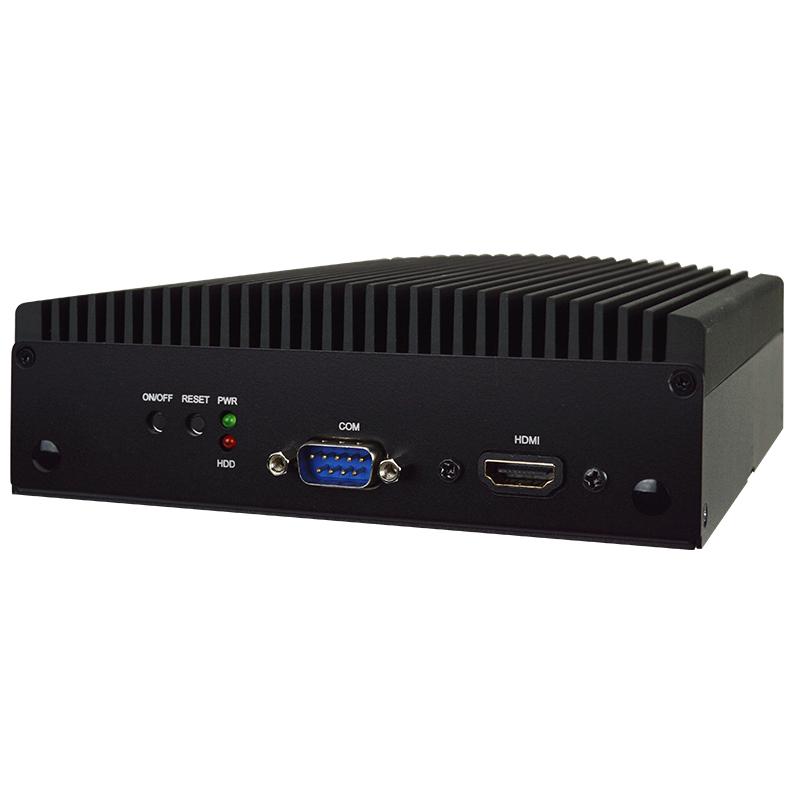

| FRONT PANEL I/O | 2 x WIFI Antenna Holes 1 x Power Button 1 x Power LED 1 x Reset Button 1 x HDD LED 1 x RS-232/422/485 1 x HDMI® |
| EXPANSION | |
| M.2 | 1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) support CNVio 1 x B-Key 3042/3052 (USB 3.2/PCIe 3.0 x1) 1 x M-Key 2242/2280 (PCIe 4.0 x4) support NVMe |
| SIM | 1 x Nano SIM Card Slot |
| MECHANICAL | |
| MOUNTING | Desktop, Wallmount, Din Rail |
| DIMENSIONS (W x D x H) | 160.2 (W) x 142.0 (D) x 52.0 (H) mm |
| GROSS WEIGHT | 1.51 kg |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | -20°C ~ 60°C (-4°F ~ 140°F) |
| STORAGE TEMPERATURE | -40°C ~ 85°C (-40°F ~ 185°F) |
| OPERATING HUMIDITY | 10 ~ 90% Relative Humidity, Non-condensing |
| CERTIFICATION | CE/FCC Class A LVD |
| ESG DECLARATION | China RoHS CMRT Report TSCA Declaration WEEE REACH |
| PART NUMBER | DESCRIPTION | QTY |
| BFLFRPU2 | BFLFRPU2 Barebone | 1 |
| HCSFBMWM01B-F | Wallmount Kit | 2 |
| L01AS062-F | Lockable Adapter 19V/4.74A 90W | 1 |
| LCSCHBJC3XX-F | Screw Pack | 1 |
| Change according to shipping area | Power Cord (Region Specific) | 1 |
 |
 |
