| SYSTEM | |
| MB FORM FACTOR | 3.5″ |
| CPU | Onboard Intel® 13th Gen Core™ i5-1335UE (Formerly Raptor Lake-P, TDP 15W) |
| CHIPSET | Intel® SoC |
| MEMORY | 2 x DDR5 4800MHz, Dual Channel SO-DIMM, up to 64GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | Intel® PTT (fTPM) |
| RTC BATTERY | Lithium Battery |
| OS SUPPORT | Windows® 11 (64bit) Windows® 10 (64bit) Linux |
| POWER | |
| POWER REQUIREMENT | DC-in 12~36V 90W Adapter: AC90~240V, DC19V/4.7A |
| POWER ON MODE | AT / ATX (Default) Mode |
| DISPLAY | |
| GPU | Intel® Iris® Xe Graphics |
| Type-C DP | 1 x Type C DP1.4 (Max Resolution: 4096 x 2160@60Hz) |
| DP | 2 x DP1.4 (Max Resolution: 4096 x 2160@60Hz) |
| HDMI® | 2 x HDMI® 2.0b (Max Resolution: 4096 x 2160@60Hz) |
| MULTIPLE DISPLAY | Support 4 Displays |
| AUDIO | |
| CODEC | Realtek Audio Codec |
| AMPLIFIER | 3W |
| LAN | |
| ETHERNET | 1 x RJ45 for Intel® I226-V 2.5GbE 1 x RJ45 for Intel® I226-LM 2.5GbE |
| SYSTEM I/O | |

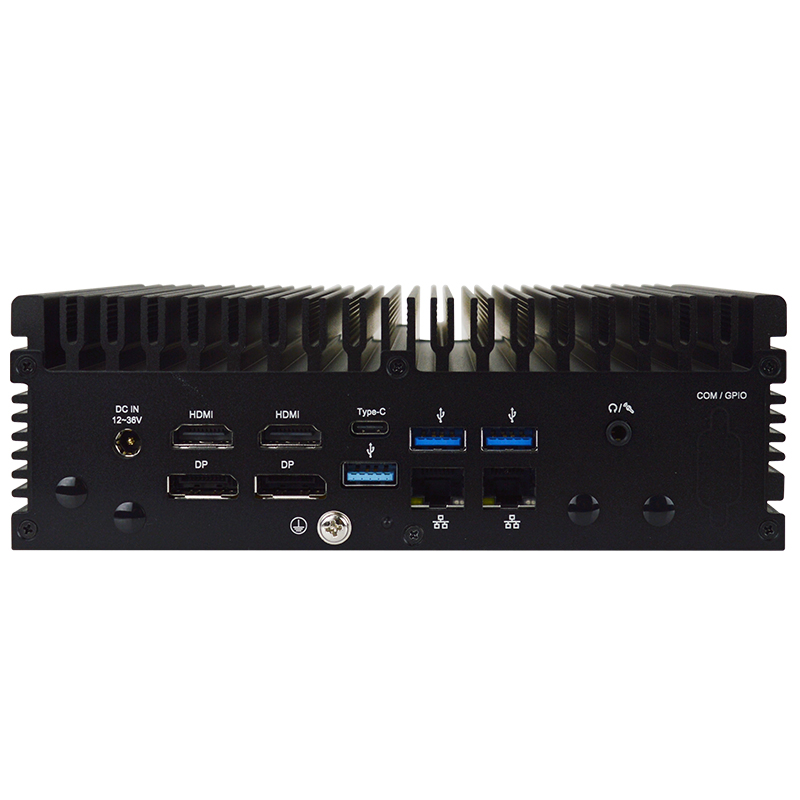

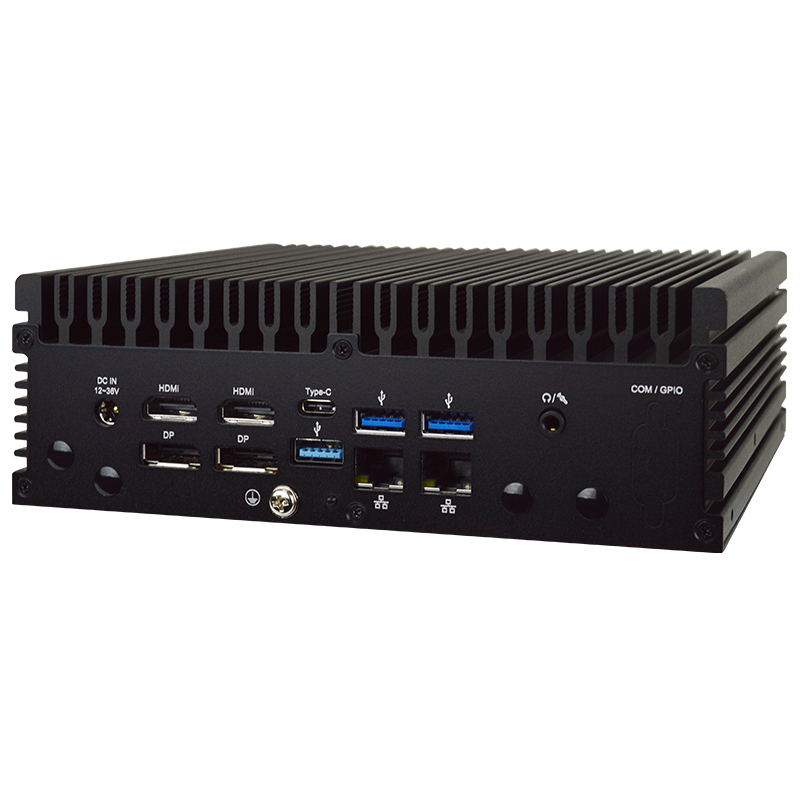

| REAR PANEL I/O | 4 x Antenna Holes 1 x DC-in (Lockable) 2 x HDMI® 2.0b 2 x DP 1.4 3 x USB 3.2 Gen 2 1 x USB 3.2 Gen 1 Type C 2 x RJ45 1 x Audio ( Line out, MIC) 1 x GND Hold |

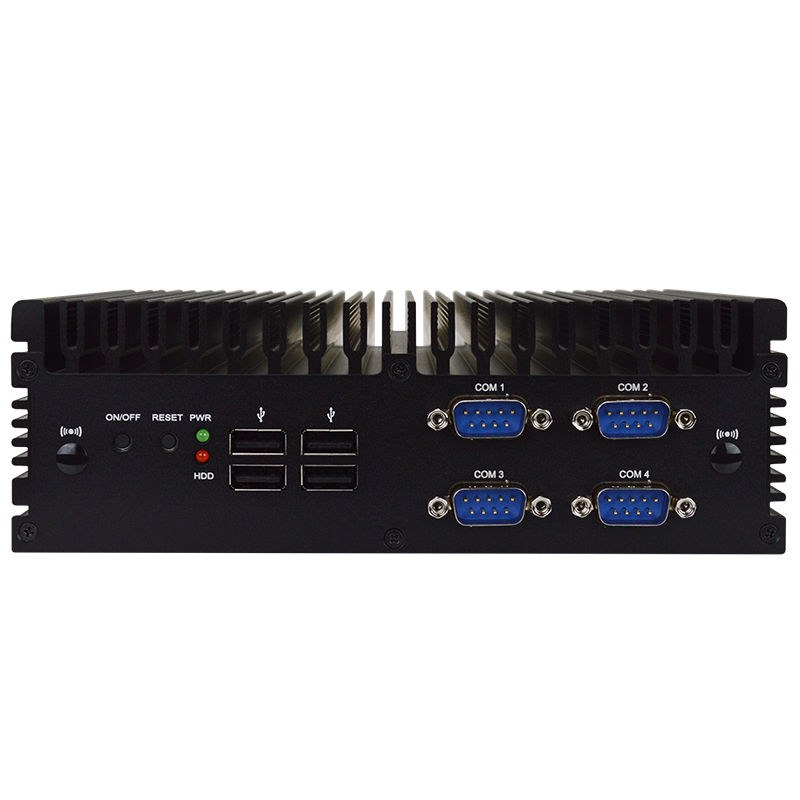

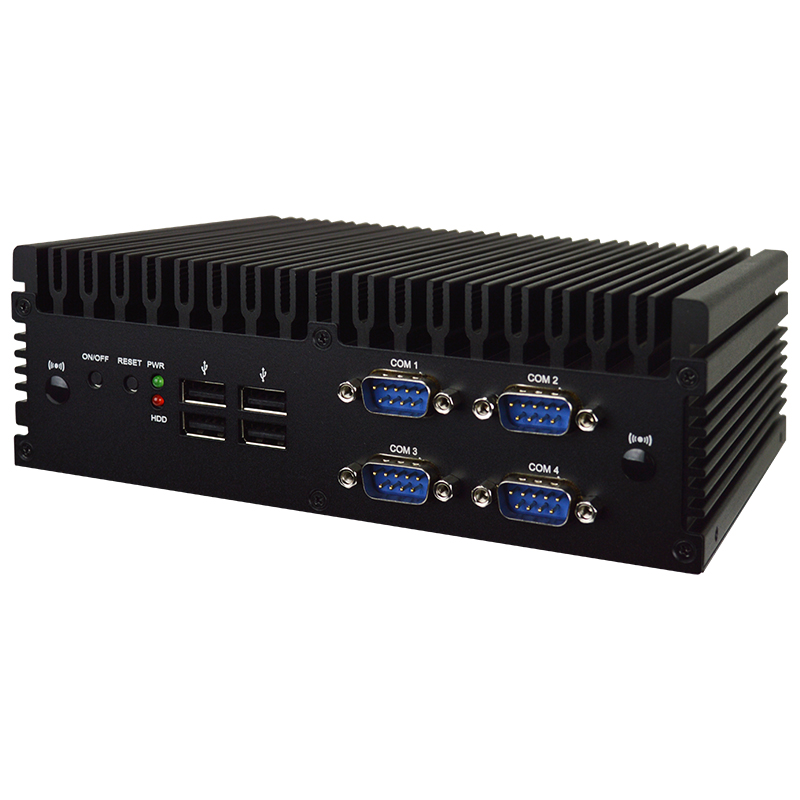

| FRONT PANEL I/O | 1 x Power Button 1 x Reset Button 1 x Power LED 1 x HDD LED 4 x USB 2.0 2 x RS-232 2 x RS-232/422/485 |
| STORAGE | |
| SATA | 1 x 2.5” SATA III 6Gb/s internal drive bay (Max. Height 9.5 mm) |
| EXPANSION | |
| M.2 | 1 x B+M-Key 2242 (SATA/PCIe 3×1) for SSD 1 x M-Key 2242/2280 (PCIe 4.0 x4) support NVMe 1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) Support CNVi |
| SIM | 1 x Nano SIM Card Slot |
| MECHANICAL | |
| MOUNTING | Desktop, Wallmount, Din Rail |
| DIMENSIONS (W x D x H) | 185.0 (W) x 142.0 (D) x 61.0 (H) mm (7.28″ x 5.6″ x 2.4″) |
| NET WEIGHT | 3.5 kg |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | -20°C ~ 60°C (-4°F ~ 140°F) |
| STORAGE TEMPERATURE | -40°C ~ 85°C (-40°F ~ 185°F) |
| OPERATING HUMIDITY | 10 ~ 90% Relative Humidity, Non-condensing |
| CERTIFICATION | CE/FCC Class A LVD |
| ESG DECLARATION | China RoHS CMRT Report TSCA Declaration WEEE REACH |
| PART NUMBER | DESCRIPTION | QTY |
| B382FRPU1 | B382FRPU1 Barebone | 1 |
| HCS370MWM01B-2-F | Wallmount Kit | 2 |
| HCS3XXDINRAILPS-F | Brackets DIN RAIL KITS | 2 |
| L01AS062-F | Lockable Adapter 19V/4.74A 90W | 1 |
| LCSCHBJC3XX-F | Screw Pack | 1 |
| Change according to shipping area | Power Cord (Region Specific) | 1 |
 |
 |
